Tonkin Gap Project

Tonkin Gap Project

Fabricated Precast Pier Molds for the the structural support of the new Tonkin Highway Bridge over the Swan River as apart of the Tonkin Gap Project. ‘
Client : TGA
Project : Tonkin Gap Project
Project Value :
Size : Dia5500 x 3830H (mm)
Contact us

The Supabowl

A very unique product, a difficult mould to fabricate but with our highly skilled tradesmen we were able to execute this perfectly. Designed for Humes, it is a sewage and waste water system product, it acts as a redistribution point when incoming flows are condensed prior to draining through the outlet. This product has been […]
Client : Humes
Project : Unique Supabowl Project
Project Value :
Size :
Contact us

Arch Mould

This product is an underpass used mostly on mine sites when creating over pass vehicle access. Like a tunnel they create a bridge. The product is cast in 2 halves that interlock in the centre using male and female keyways. The product is quite large once constructed. 7.5 mtrs High x 10.8 mtrs wide.
Client : Humes
Project : Arch Mould
Project Value :
Size :
Contact us

Transport Stands – Humes

Heavy Transport Frames for the safe transport of stressing wire from Metro area to the North of WA. Stackable for efficient transport when empty. Engineered for a loaded stackable height of 2. 25 frames in Total. WLL (Working Load Limit) on each frame verified to 11,000 kgs.
Client : Humes
Project : Transport Stands
Project Value :
Size :
Contact us

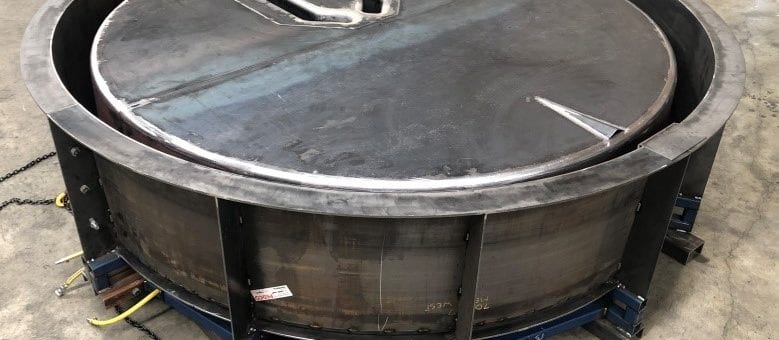

Trough Moulds

All types and configurations of Trough Moulds. Tappers, Chamfers and Radius designs to suit requirements.
Client : Hills Concrete
Project : Round and Oblong Trough Moulds
Project Value :
Size : 4300L x 2800W x 840H mm
Contact us

Yagan Square Seat Moulds

Curved and Rounded sections with adaptable end interface to create different modules and arrangements. Forms required Curved Radius edges with cone sections and recessed bases.
Client : Precast Innovations
Project : Seat Moulds
Project Value :
Size : Dia5500 x 3830H (mm)
Contact us

Elevated Tank Forms

Water supply for the town of Denham, Quarter section formed water tank. Built incorporating a 14mtr High upright shaft 4mtrs x 4mtr square for elevation and access. Each quarter concrete segment of the tank weighed approx. 45 tonne and total capacity of the tank 250 kl.
Client : BGC
Project : Elevated Water Tank and Shaft
Project Value :
Size : Dia5500 x 3830H (mm)
